41×41 Channel

HTST 041

HTST 041 Channels are core components of modular structures. It is available in varying height and a fixed width of 41 mm. This facilitates optimum design for various structural requirements.

Material Specification

Mild Steel

Surface Finish

Pre-Galvanised / Hot Dip Galvanised

Sheet Gauge

16 (1.6 mm), 14 (2.0 mm), 12 (2.5 mm)

Type

Slotted, Plain*

Standard Length

3m

Naming Nomenclature

CodeFull Form
(E.g. HTST12041SGP)
- HTST: Hi-Tech Channel
- 16/14/12: Sheet Gauge
- 041: Channel Size
- S: Slotted Channel
- GP: Pre-Galvanized
- HDG: Hot Dip Galvanized
*Plain channels also can be manufactured and supplied on request.

Technical Details

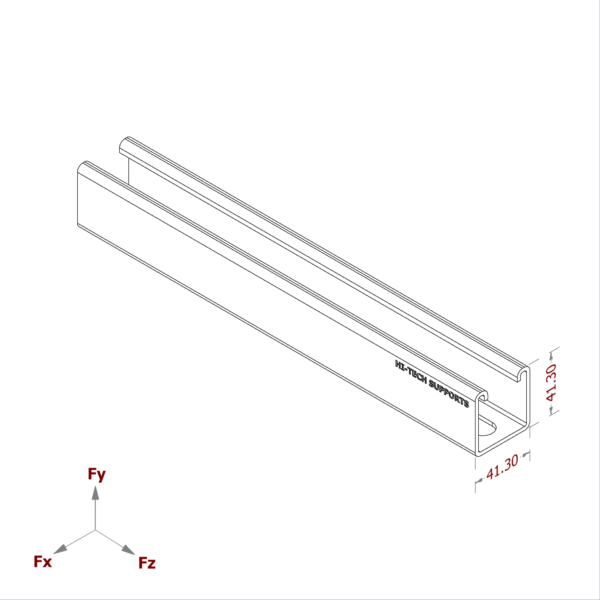

3D Dimension of 41x41 Channel HTST 041
Technical Specifications161412
Area of Sectionmm2225.9278.6342.2
Moment of Inertia x-xmm4512006178973840
Moment of Inertia y-ymm4646707863894870
Sectional Modulus x-xmm3218326353149
Sectional Modulus y-ymm3313238084594
Maximum Allowable Moment MxN-mm275104332001396752
Maximum Allowable Moment MyN-mm394597479825578868
*Above mentioned values are for plain channels
