Square Beam Clamp
HTSQB
The Square Beam Clamp is used as a modular arrangement to attach 041/082 channels to Structural members (as shown in the figure below). This facilitates suspension points directly below the steel structure or also offset to the structure.
Material Specification
Square U-Bolt : Carbon Steel Rod
Plate : Mild Steel
Plate : Mild Steel
Surface Finish
Electro-Galvanised / Hot Dip Galvanised
Naming Nomenclature

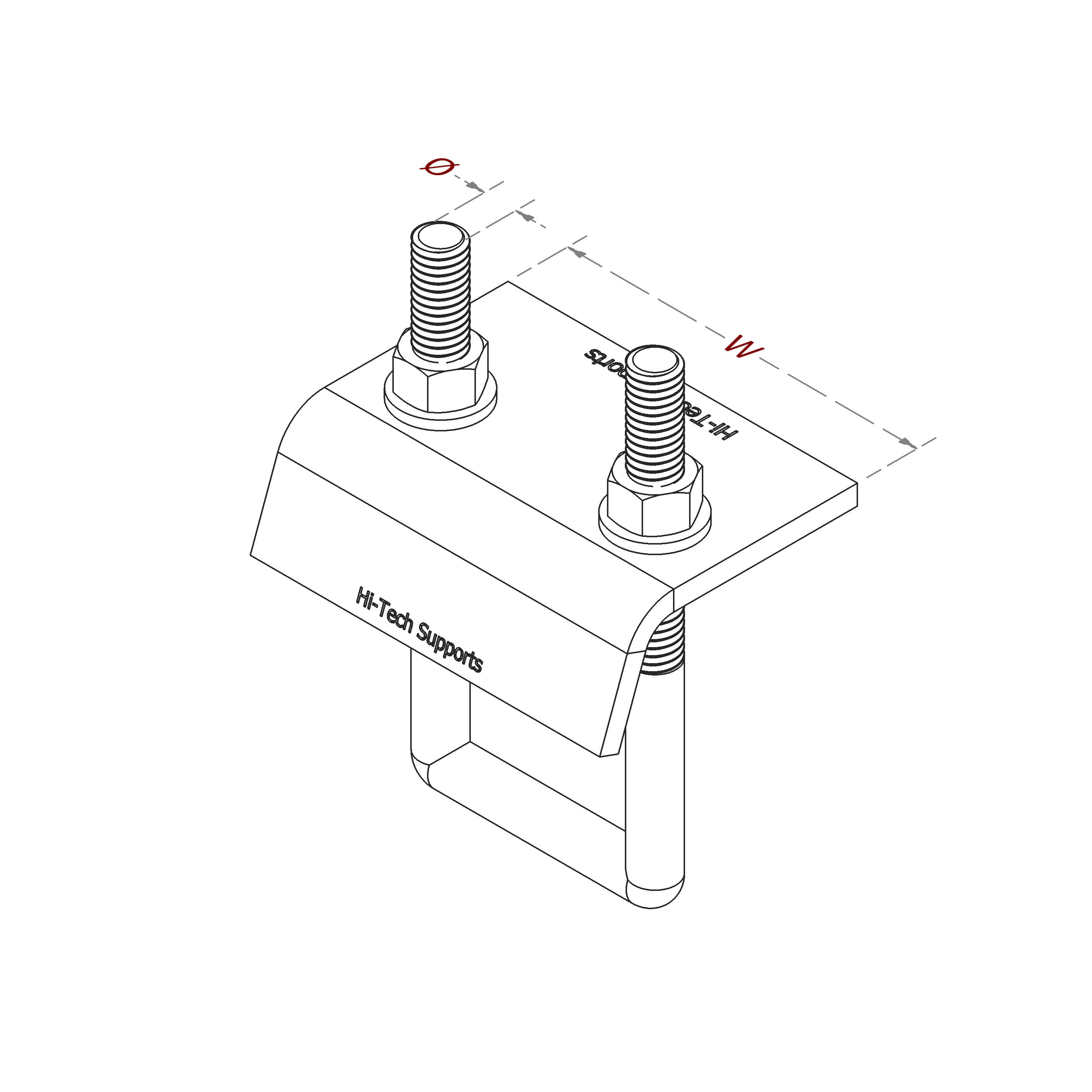

Technical Details
| Model No. | W | Ø |
|---|---|---|
| (mm) | (mm) | |
| HTSQB041 | 89 | 10 |
| HTSQB082 | 89 | 10 |
